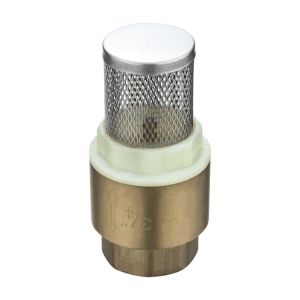

Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen

    Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers

    Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers
    • Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers
    • Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers
    • Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers
    • Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers
    • Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers
    • Buy cheap Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen from wholesalers

    Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen

    Ask Lasest Price
    Brand Name : TMOK
    Model Number : TK-7012
    Price : USD1.5-USD13.5/pcs
    Payment Terms : T/T,Online Transfer,Western Union,MoneyGram,Credit Card,Apple Pay,Google Pay. Paypal
    Supply Ability : 3000pcs-100000pcs it only takes 35 days
    Delivery Time : 35 work days
    Certification : ISO9001:2015 CE CNAS TUV SGS ACS WRAS
    • Product Details
    • Company Profile

    Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen

    Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen

    Check Valve Installation & Use Manual

    I. Scope of Application

    Check valve is mainly used on pipeline in which medium flows unidirectionally.It can stop fluid (medium) from backflow automatically and it only allows thmedium to flow towards one direction. The working medium includes water, oil andgas. The nominal pressure is 1.6MPa. The working temperature is -10'C< tK120C.

    Il. Product Features

    1. The product uses high quality copper material and adopts hot extrusion forgingtechnology.

    2. Vertical type flexible sealing structure material is silicone rubber. Spring materialis stainless steel.

    III. Installation Instructions

    1. Straight-through type lifting check valve shall be installed on horizontal pipeline.Vertical type lifing check value shall be installed on vertical pipeline. Medium flowsfrom bottom to top.

    2. The installation position of swing check valve is not limited. It is generallyinstalled or horizontal pipeline. It can also be installed on vertical pipeline andinclined pipeline.

    3. Medium flow direction shall be consistent with the arrow direction on the valvebody during the intallation.

    IV. Quality Guarantee

    Our company is responsible for the replacement of products due to quality defectwithin 12 months after the products are sold. Improper installation or use of theproducts is not included in such range.


    Parameters


    ApplicationGeneral
    Temperature Of MediaMedium Temperature
    PowerManual
    Port Size1/2"-4"
    SurfaceSand Blasting Nature Color
    CertificateCE,ISO9001,2015
    PN20
    Body MaterialWrought Brass
    NamePort Brass Gate Valve
    Standard Or NonstandardStandard
    MaterialBrass
    PressureMedium Pressure
    MediaWater
    StructureCheck
    SizeDN15 To100
    TechnologyForging&temper
    Product NameBrass Check Valve
    TypeNormal Colse
    ConnectionFemale Thread
    PortNINGBO

    Details

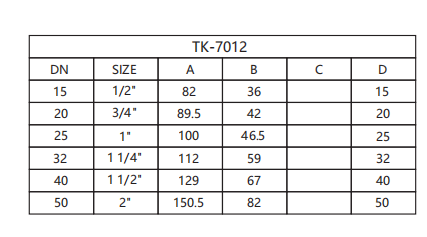

    Technical Sheet


    Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen

    Since 1980s,TMOK has been designing, producing and marketing a wide range of products for the hydrosanitary,including brass valves bibcock and fittings.The aim of the company is the customer satisfaction, trying to give the best quality – price combination, specially made for the professional distributor.
    If you’re looking for a top water tap, look no further! This tap is made with top quality materials and has been rated one of the best on the market. It’s perfect for any home or office and is sure to keep your water safe and secure. Order yours today and see what all the fuss is about!
    Regarding express and logistics, we have logistics agents who have cooperated for more than 10 years and can transport to most countries and regions in the world. We make sure that every penny of our customers is well spent.
    We take shipping very seriously and are able to respond and ship quickly after you place an order.
    FAQ

    Q.Which size sell best?

    TK-7012 1/2" is our hot sell check valves,Each year sell more than 200000 PCS.


    Q.What's your factory main product?

    Our factory just do all kinds of foot valves now,TK-7012 check valve is our main production,It's high quality with competitive price.


    Q.How to request a manufacturing quote?

    A.Simply call or send us E-mail with your purchase request.Be sure to include all accessories in your request for quote.


    Q.How are orders packed and shipped?

    A.For custom order,TMOK can design full-color custom packaging to match your brand,if requires.Most shipments

    include boxes packed inside an outer carton and placed on a wooden pallet.


    Q.Are there any special requirements for OEM purchases?

    A.Yes.TMOK requires proof of trademark registration in order to print or emboss your trademark onto the product or

    packaging.


    Q.Do TMOK products come with a warranty?

    A.Yes.TMOK backs our products100%.That's why we offer 3-year product life guarantee ,and a generous1 year

    warranty on al purchases that begins with the bill of lading.

    Net Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter ScreenNet Irrigation 1/2" 1" 2" One Way Non Return Brass Check Valve With Stainless Steel Filter Screen
